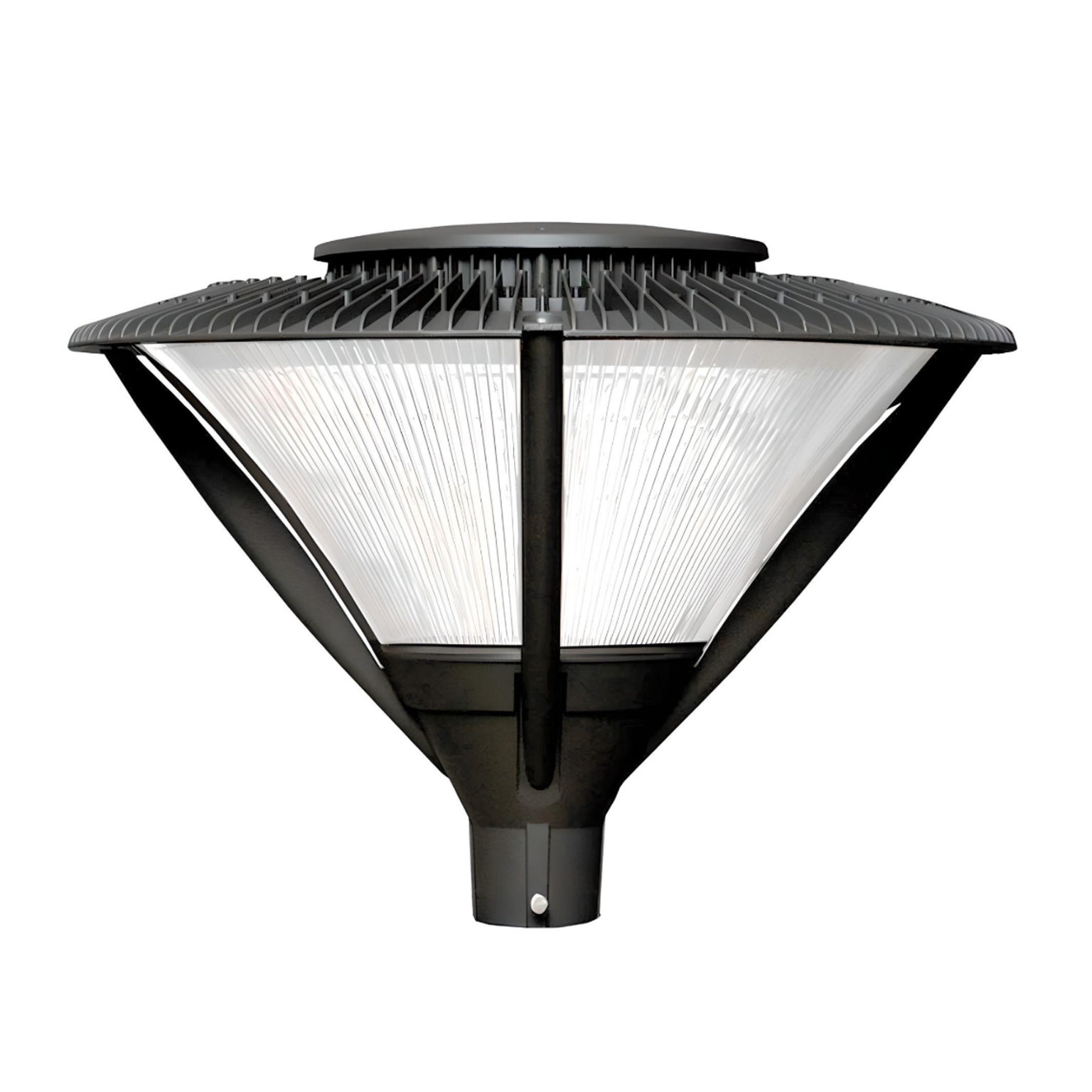

REVEAL-ENC 108W + 190W
Wall IP66 LED Post Top Luminaire
The REVEAL 108W & 190W is an IP66 robust top luminaire with an enclosed optic. Black powdercoat finish
| Luminous Flux: | 13,000lm or 16,101lm |
| System Power: | 108W or 190W |
| Efficacy: | 97.7 L.Lm/cW |
| Colour Temperature: | 4000k or 5000k |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Body Construction: | Die cast aluminium housing and front frame. |
| Dimensions: | Ø679mm (Diameter) |
| Cut Out: | n/a |
| Depth: | 505 mm |
| IP Rating: | IP66 |
| Finish: | Black |
| Diffuser: | EnClosed |
| Control Gear: | Standard, Non Dimming |
| Wireless: | n/a |
| Installation: | Ø76mm Post Top Spigot |
| Distribution: | Direct |
| Emergency: | n/a |
