Recessed Lighting
ALULINE60

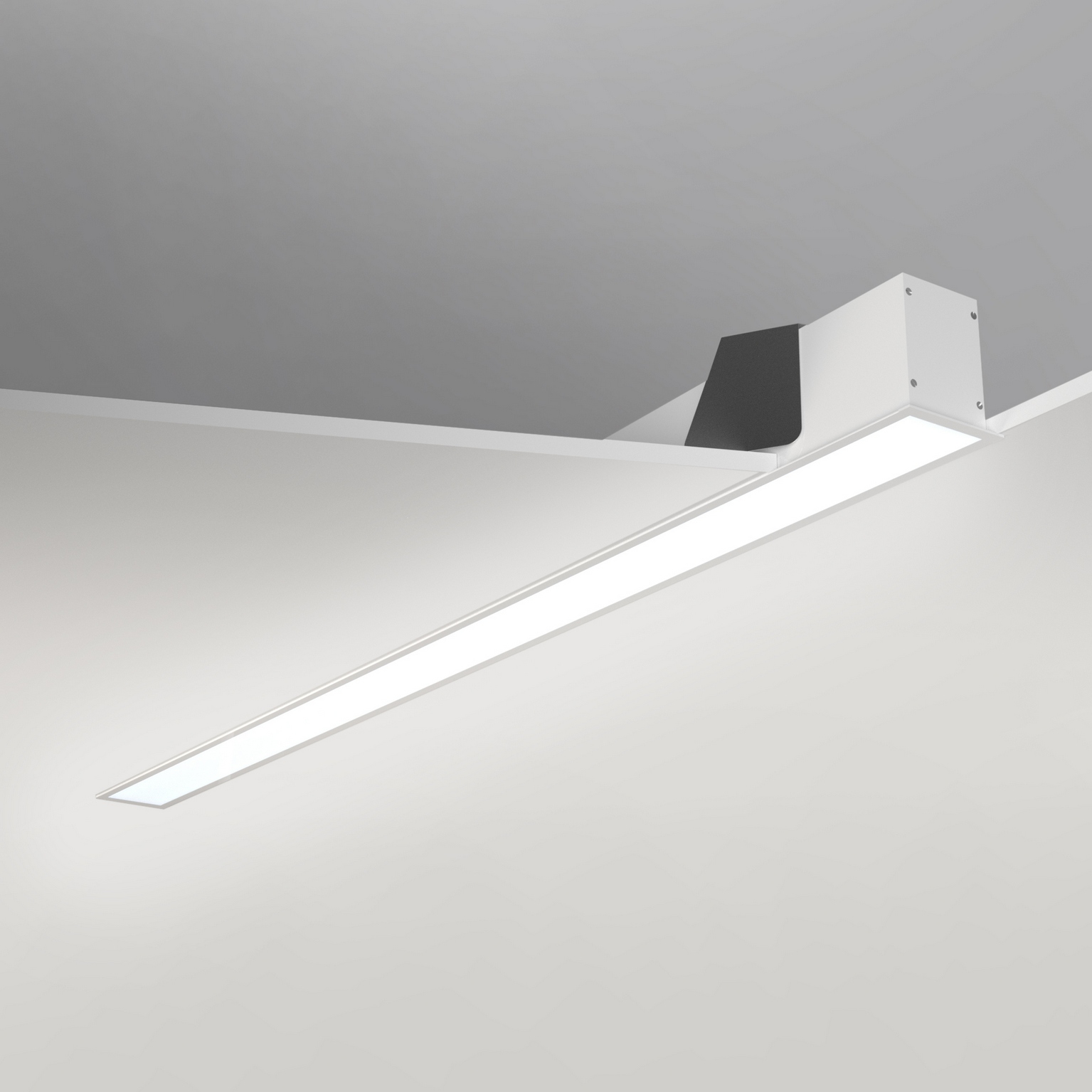

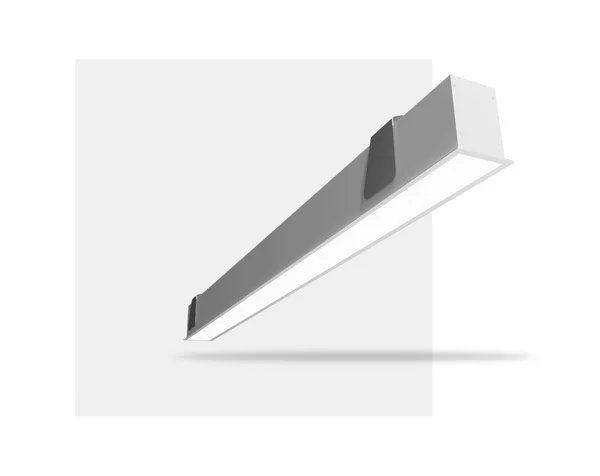

Recessed LED Linear
ALULINE60 range provides an energy efficient and high output LED source in the style of a recessed linear luminaire. The luminaire is suitable for a wide range of applications including offices, meeting rooms, circulation areas and receptions.
| Luminous Flux: | 1964 | 2944 | 3548 | 4059lm/m |
| System Power: | 17 | 22.7 | 27.8 | 32.4W/m |
| Efficacy: | Up to 125.3 l.Lm/cW |
| Colour Temperature: | 3000K, 4000K or Tuneable White |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 72,000 hrs |
| Body Construction: | Aluminium Extrusion |
| Dimensions: | 592-1434mm (Length) 74mm (Trimmed) | 60mm (Plastered-In) (Width) |
| Depth: | 101mm |
| IP Rating: | IP20 |
| Finish: | White |
| Diffuser: | Polar White or Micro Pristmatic Optic |
| Control Gear: | Standard, DALI or SDIM |
| Wireless: | Available |
| Installation: | Recessed (Trimmed or Plastered-in) |
| Distribution: | Direct |
| Emergency: | ME3, ME3-ST, ME3-PRO or ME3-WI |
