Residential Lighting

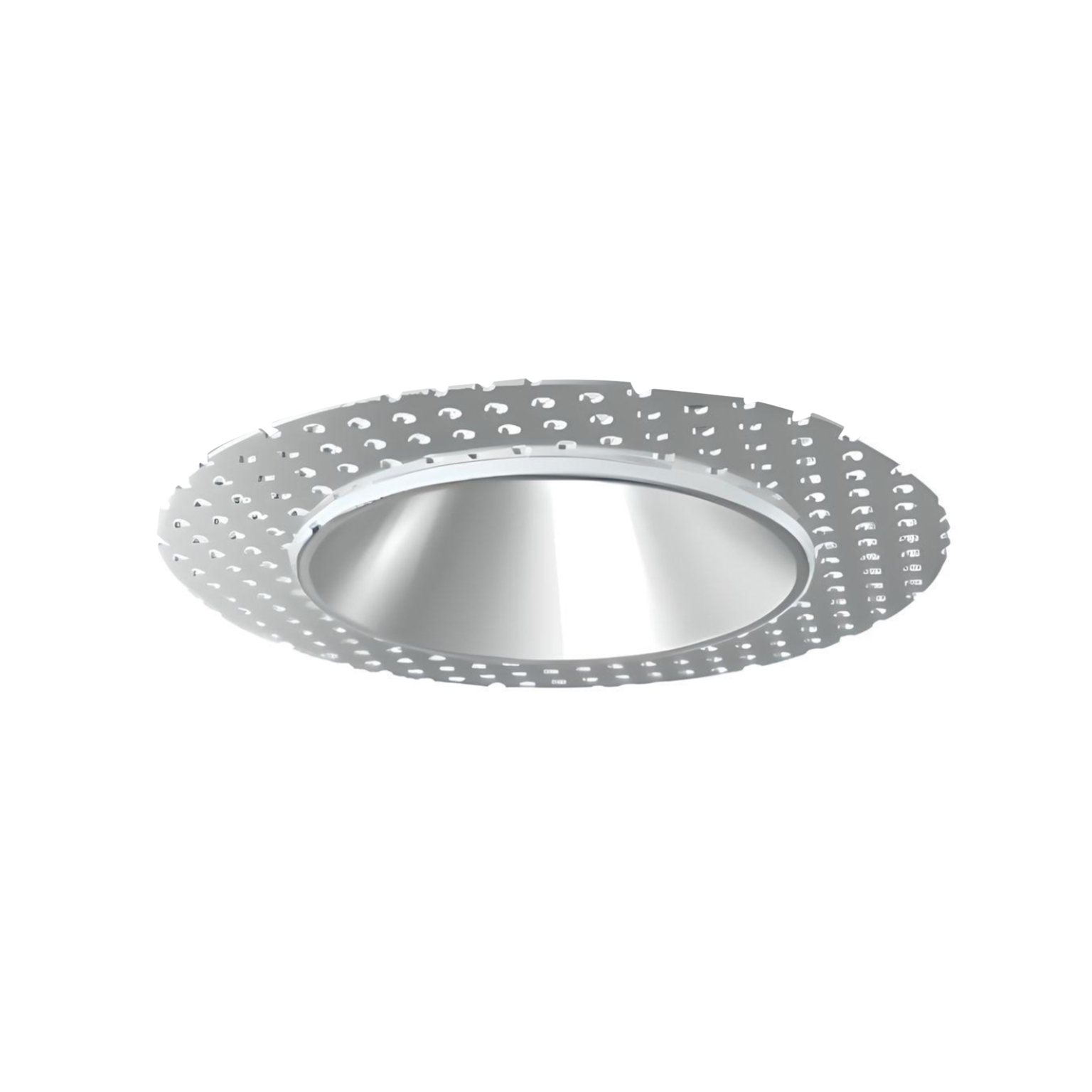

Recessed ILS Plaster-in Downlight

The adjustable plaster-in ILS downlight is a competitive, interchangeable and architectural LED downlight system. An alternative light engine to a MR16 or GU10 lamp. The ILS PI can be used with the ILS 6W and 9W engine wattages.

Luminous Flux: 650lm or 950lm
System Power: 8W or 11W
Efficacy: 81.3L.Lm/cW
Colour Temperature: 3000k or 4000k
CRI: RA > 80
Colour Consistency: 3SDCM
Life Expectancy L70/F10: 50,000hrs
Body Construction: Aluminium housing
Dimensions: Ø100mm
Cut Out: Ø73mm
Depth: 80mm (8W) or 100mm (11W)
IP Rating: IP20
Finish: White, Silver, Grey or Black
Diffuser: Clear
Control Gear: STD, DALI, SDIM or MDIM
Wireless: Available
Installation: Recessed - Plastered in
Distribution: Direct
Emergency: RME3, RME3-ST, RME3-PRO or RME3-WI
