Recessed Lighting

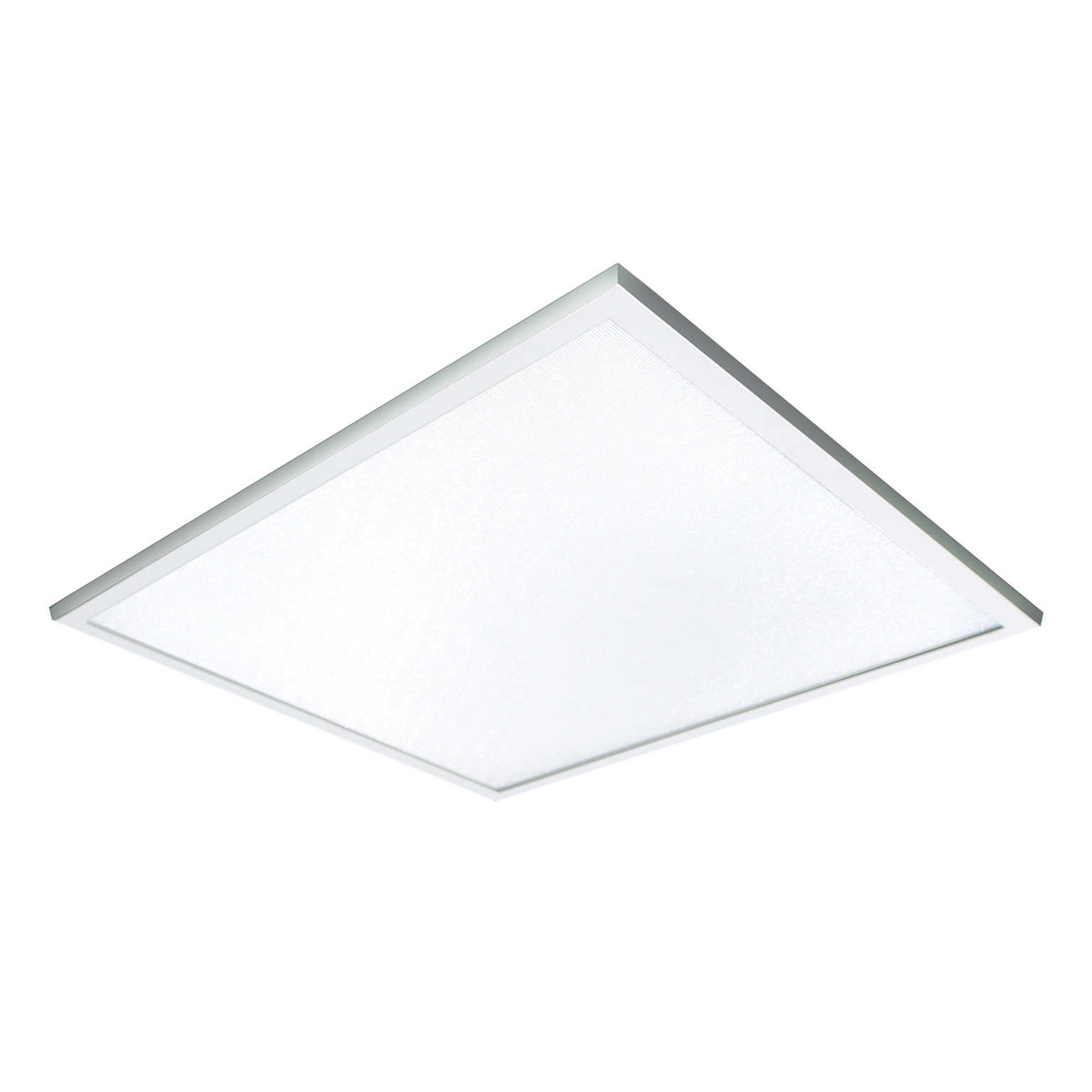

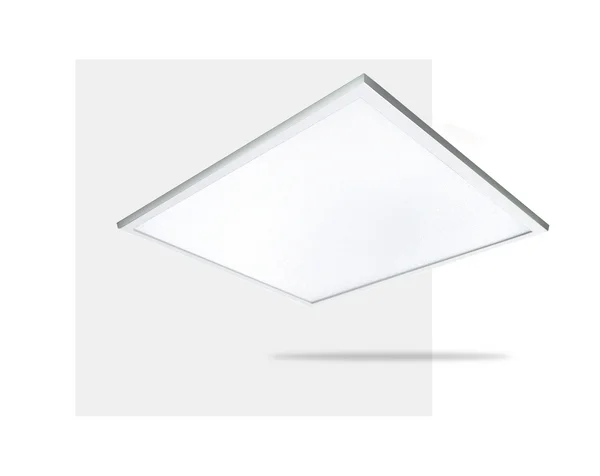

FLATLINE UGR19
Recessed LED Modular
The FLATLINE UGR19 is an energy-efficient modular luminaire providing low-glare workplace lighting. Suitable for offices, open-plan areas, retail, corridors and amenity spaces. Its ultra-slim 8.5 mm panel allows installation in shallow ceiling voids.
| Luminous Flux: | 3049lm | 4014lm | 4447lm |
| System Power: | 23.2W | 31.6W | 35.9W |
| Efficacy: | Up to 131.4 l.Lm/cW |
| Colour Temperature: | 3000K, 4000K or 6500K |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Body Construction: | Aluminium |
| Dimensions: | 595 x 595mm (Length x Width) |
| Depth: | 8.5mm (without driver), 42mm (with driver) |
| IP Rating: | IP20 |
| Finish: | White |
| Diffuser: | Opal |
| Control Gear: | Standard, DALI, SDIM or MDIM |
| Wireless: | Available |
| Installation: | Recessed panel, Surface mounted (600 x 605 x 50mm) |
| Distribution: | Direct |
| Emergency: | ME3, ME3-ST, ME3-PRO or ME3-WI |
