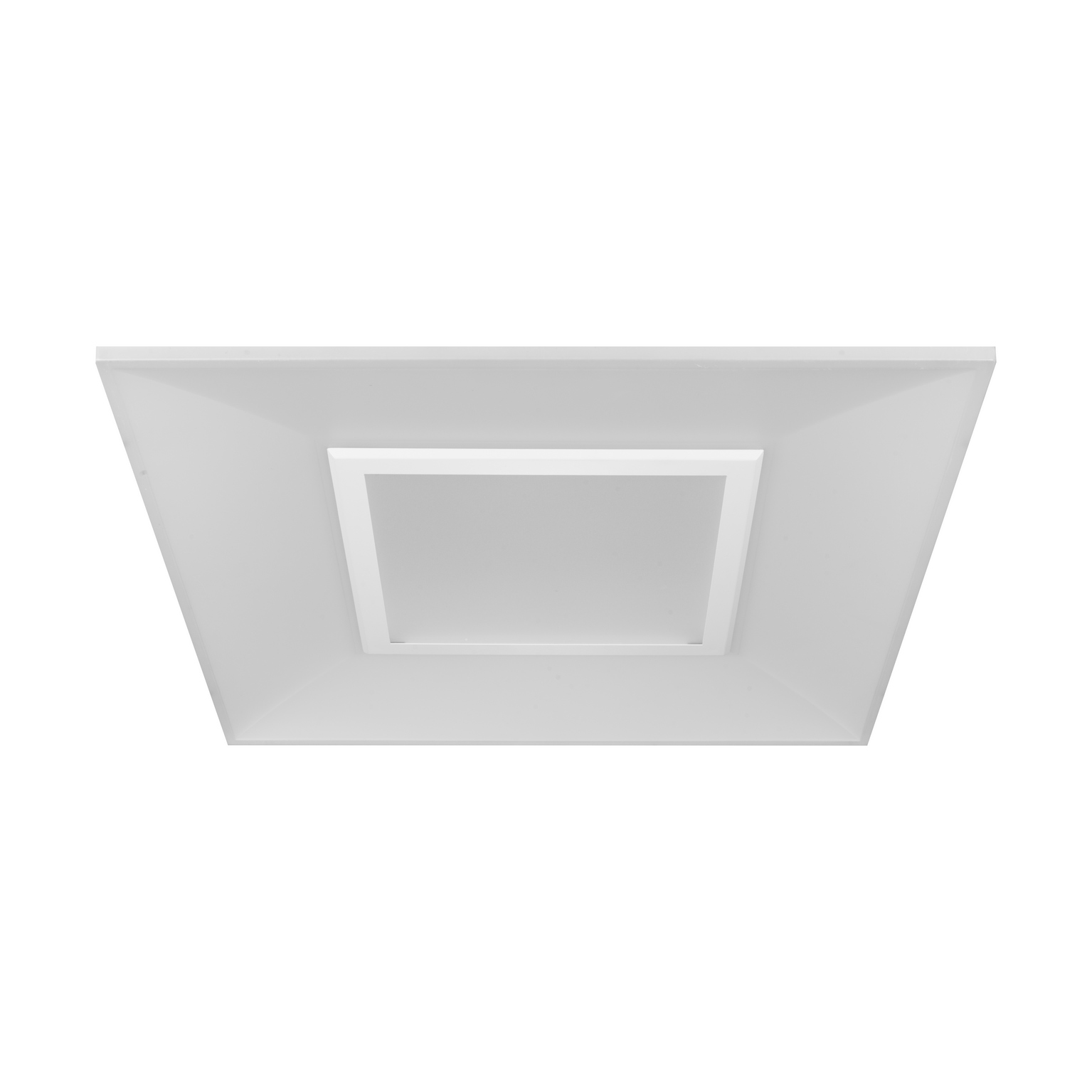

DYAD
Recessed LED Modular
The DYAD LED is a recessed modular luminaire with symmetric illumination planes. The central diffuser offers glare control through a micro prismatic optic. The outer diffuser is manufactured from a polar white diffuser.
| Luminous Flux: | 2541 - 4200lm |
| System Power: | 20 - 39W |
| Efficacy: | 127.1 L.Lm/cW |
| Colour Temperature: | 3000k, 4000k or 6000k |
| CRI: | RA > 80 |
| Colour Consistency: | 2SDCM |
| Life Expectancy L70/F10: | 75,000hrs |
| Body Construction: | Fabricated steel |
| Dimensions: | 595 x 595mm (L x W) |
| Cut Out: | n/a |
| Depth: | 125mm |
| IP Rating: | IP20 |
| Finish: | White-RALa9016M |
| Diffuser: | Central MPO |
| Control Gear: | Standard, DALI, SDIM or MDIM |
| Wireless: | Available |
| Installation: | Recessed panels |
| Distribution: | Direct |
| Emergency: | ME3, ME3-ST, ME3-PRO or ME3-WI |
