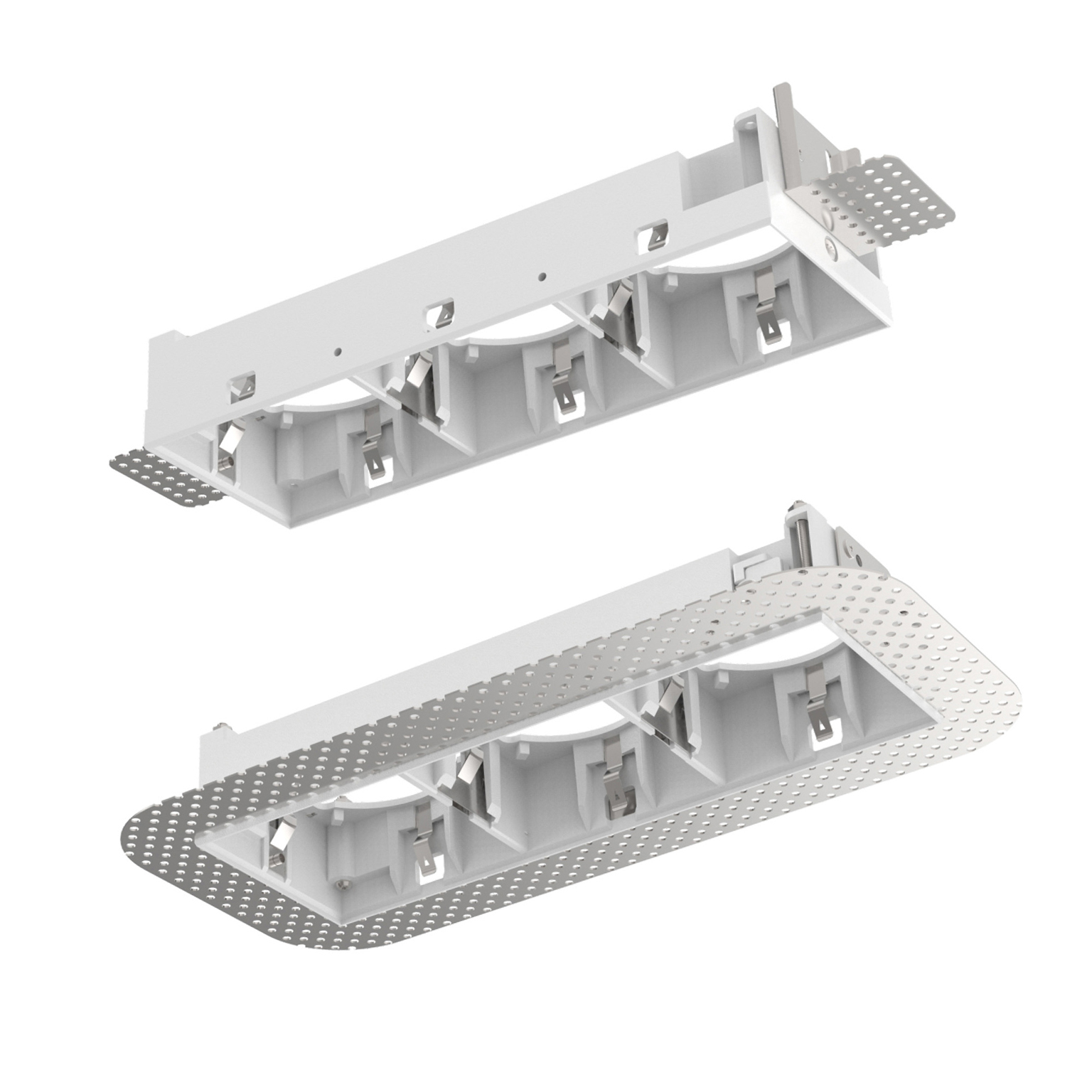

ILS Cell3 Trimmed or Plaster-in

The ILS CELL3 is a range of interchangeable trimmed and plaster-in bezel options and has a range of reflector colours available. The CELL3 can be used with the ILS 6W and 9W engine wattages

Luminous Flux: 650lm or 905lm
System Power: 8W or 119W
Efficacy: 81.3L.Lm/cW
Colour Temperature: 3000k or 4000k
CRI: RA > 80
Colour Consistency: 3SDCM
Life Expectancy L70/F10: 50,000hrs
Body Construction: Aluminium housing
Dimensions: Trimmed: 207 x 78mm, Plaster-in: 240 x 112mm
Cut Out: Trimmed: 198 x 68mm, Plaster-in: 200 x 72mm
Depth: 72mm (8W) or 98mm (11W)
IP Rating: IP20
Finish: Black or White
Diffuser: Clear
Control Gear: STD, DALI, SDIM or MDIM
Wireless: Available
Installation: Recessed - Trimmed or Recessed - Plastered in
Distribution: Direct
Emergency: RME3, RME3-ST, RME3-PRO or RME3-WI
