Recessed Lighting

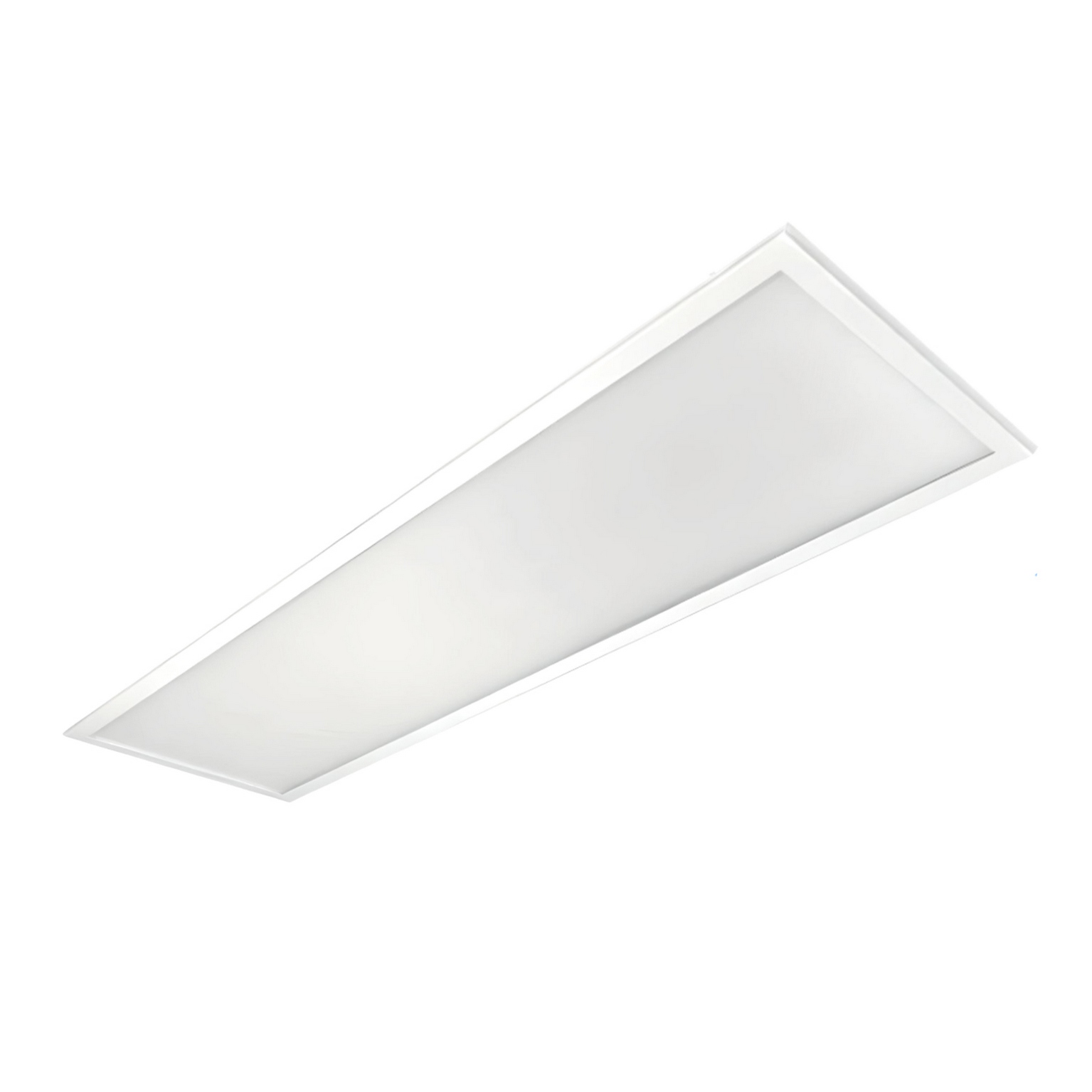

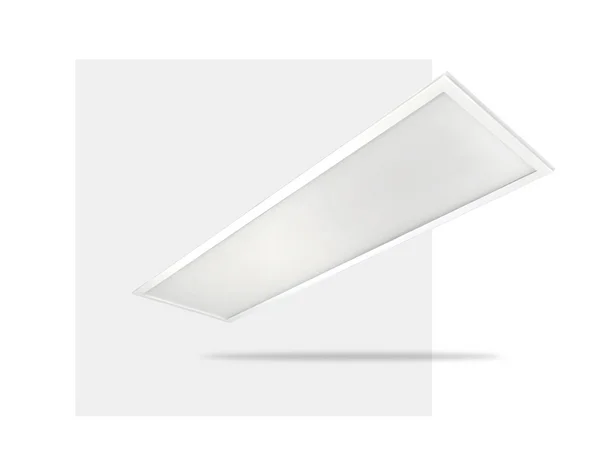

FLATLINE 123
Recessed LED Modular
The FLATLINE 123 UGR19 is an economical, ultra-shallow 1200 × 300 mm LED luminaire ideally suited to open-plan environments and classrooms. With a panel depth of just 9 mm, it can be installed into extremely shallow ceiling voids.
| Luminous Flux: | 3049lm | 4017lm | 4447lm More Outputs available |
| System Power: | 23.2W | 31.6W | 35.9W More Outputs available |
| Efficacy: | Up to 127.1 l.Lm/cW |
| Colour Temperature: | 3000K or 4000K |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Body Construction: | Aluminium |
| Dimensions: | 1200 x 300mm (Length x Width) |
| Depth: | 9mm (without driver), 42mm (with driver) |
| IP Rating: | IP20 |
| Finish: | White |
| Diffuser: | UGR19 Diffuser |
| Control Gear: | Standard, DALI, SDIM or MDIM |
| Wireless: | Available |
| Installation: | Recessed panel, Surface mounted or Wire suspended |
| Distribution: | Direct |
| Emergency: | ME3, ME3-ST, ME3-PRO or ME3-WI |
