Surface & Suspended Lighting

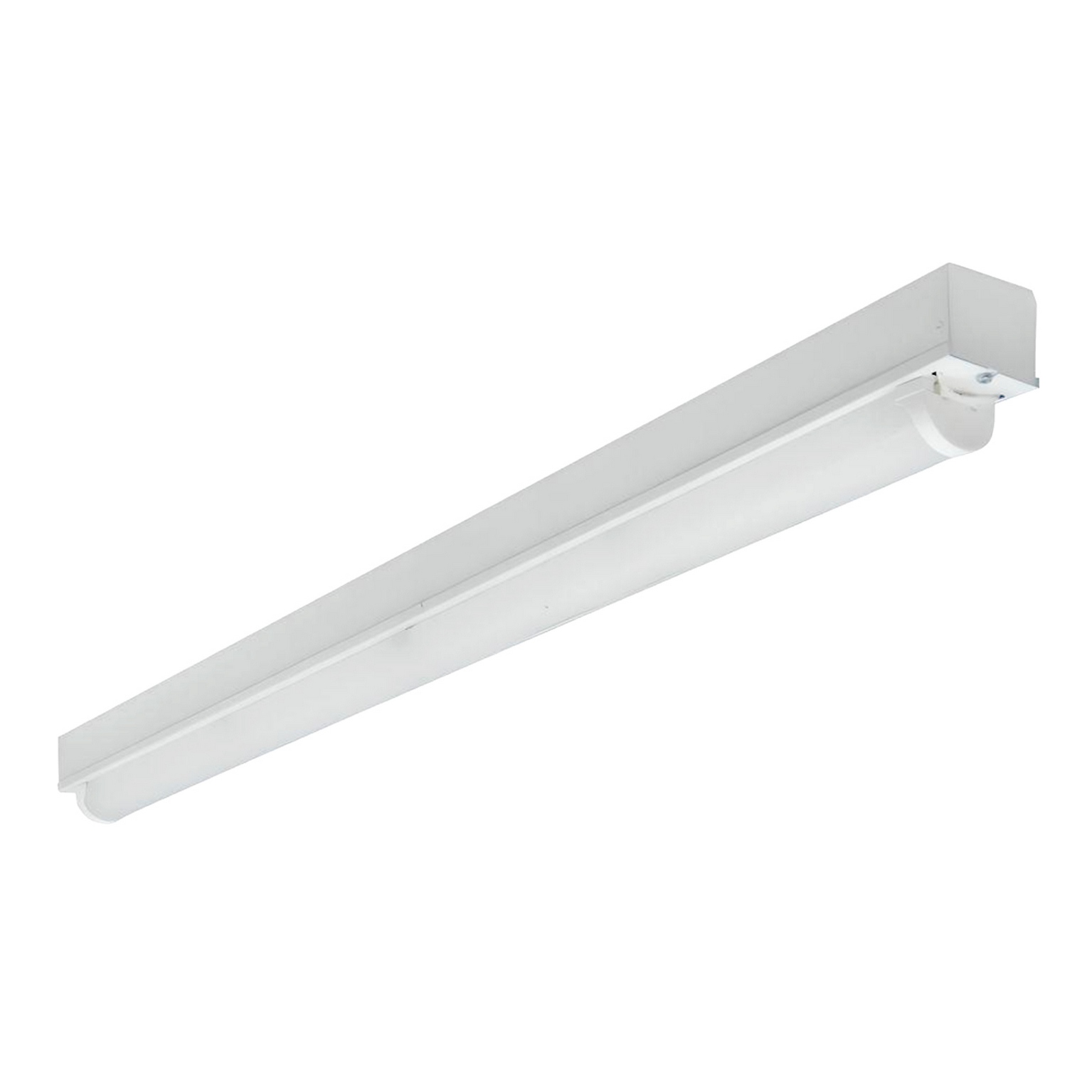

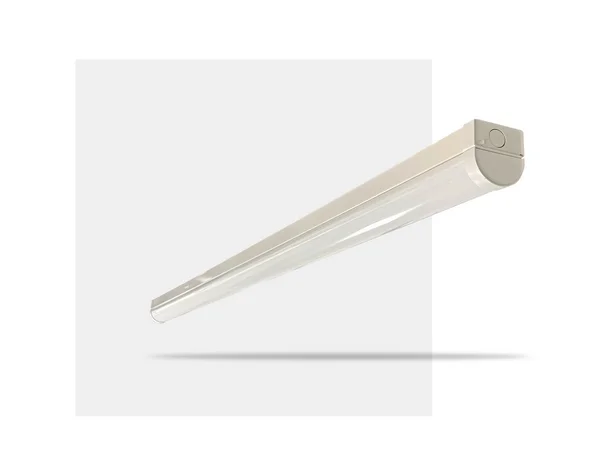

BATTEN
Surface LED linear
The Batten is a A low-maintenance, cost-effective LED batten luminaire providing an energy-efficient, high-output alternative to T5 fluorescent lamps.
| Luminous Flux: | 2978lm-7611lm |
| System Power: | 22W-57W |
| Efficacy: | 133.52 l.Lm/cW |
| Colour Temperature: | 3000K, 4000K or 5000K |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Dimensions: | 1175 x 62 x 70 mm (/12) | 1475 x 62 x 70 mm (/15) |
| Depth: | 76mm |
| IP Rating: | IP20 |
| Finish: | White RAL9016, or specified RAL colour |
| Diffuser: | High Transmission Opal |
| Control Gear: | Standard, DALI or SDIM |
| Wireless: | Available |
| Installation: | Surface mounted or Wire suspended |
| Distribution: | Direct |
| Emergency: | ME3, ME3-ST, ME3-PRO or ME3-WI |
