Recessed Lighting

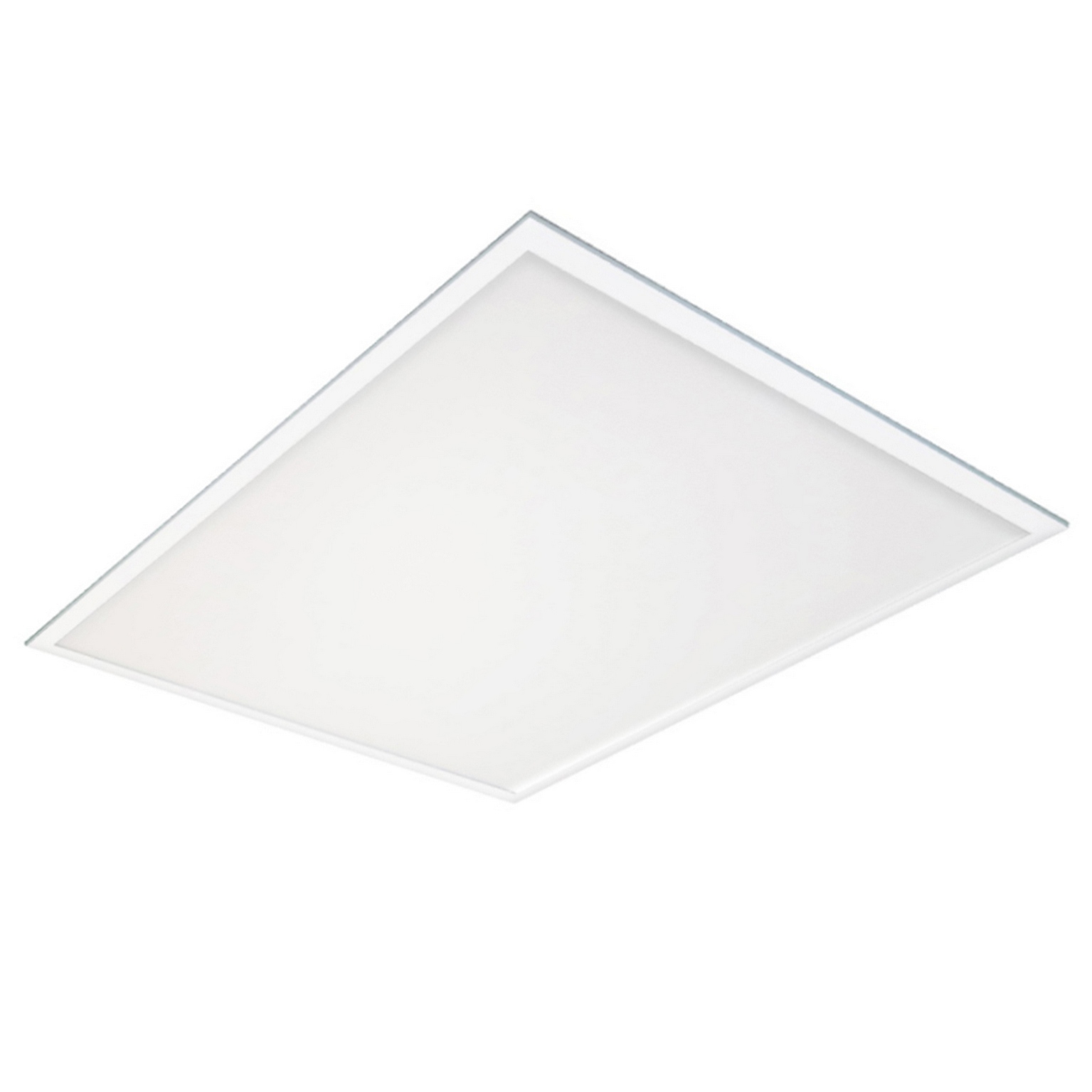

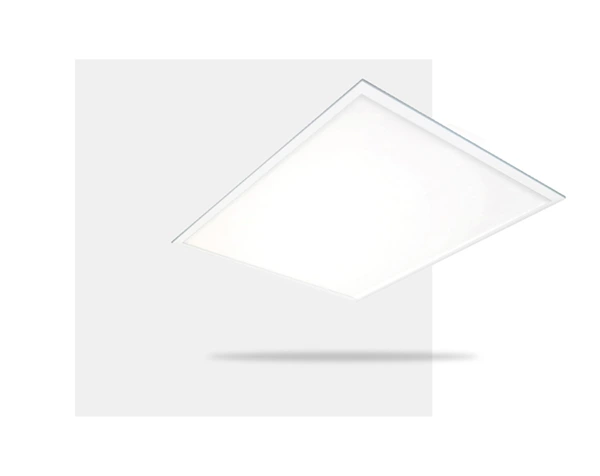

FLATLINE OP
Recessed LED Modular With An Opal Diffuser
The FLATLINE OP is an economical, ultra-shallow LED luminaire, ideal for open-plan environments and classrooms. Its slim 9 mm panel depth allows installation into even the shallowest ceiling voids.
| Luminous Flux: | 3600lm | 4100lm |
| System Power: | 40W | 45W |
| Efficacy: | Up to 91.1 l.Lm/cW |
| Colour Temperature: | 3000K or 4000K |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Body Construction: | Aluminium |
| Dimensions: | (/55) 500 x 500mm | (/66) 600 x 600mm |
| Cut Out: | (/55) 494 x 494mm | (/66) 594 x 594m |
| Depth: | 32mm (with out driver) |
| IP Rating: | IP20 as standard | IP65 available |
| Finish: | White bezel |
| Diffuser: | Opal |
| Control Gear: | Standard, DALI, SDIM or MDIM |
| Wireless: | Available |
| Installation: | Recessed panel, Surface mounted (600 x 605 x 50mm) |
| Distribution: | Direct |
| Emergency: | ME3, ME3-ST, ME3-PRO or ME3-WI |
