Exterior Lighting

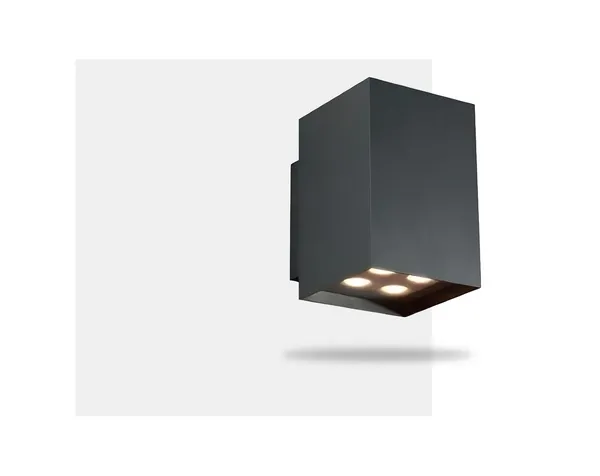

ADA-SQ
A Square Wall Mounted IP65 LED Luminaire
The ADA-SQ features a die-cast aluminium base with an extruded aluminium body, a super white tempered glass lens for visual comfort, and a UV-protected powder-coated finish for excellent corrosion resistance.
| Luminous Flux: | (DL) 990lm & 2350lm | (UDL) 2300lm & 4100lm |
| System Power: | |
| Efficacy: | Up to 113.9 l.Lm/cW |
| Colour Temperature: | 3000K |
| CRI: | RA > 70 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Body Construction: | Die cast aluminium |
| Dimensions: | 100 x 100 x 150mm 150 x 150 x 170mm 100 x 100 x 150mm 50 x 150 x 170mm |
| IP Rating: | IP65 |
| Finish: | Black |
| Diffuser: | Tempered frosted glass lens |
| Control Gear: | Standard, non dimming |
| Installation: | Wall Mounted |
| Distribution: | Direct or Direct/Indirect available |
| Emergency: | n/a |
