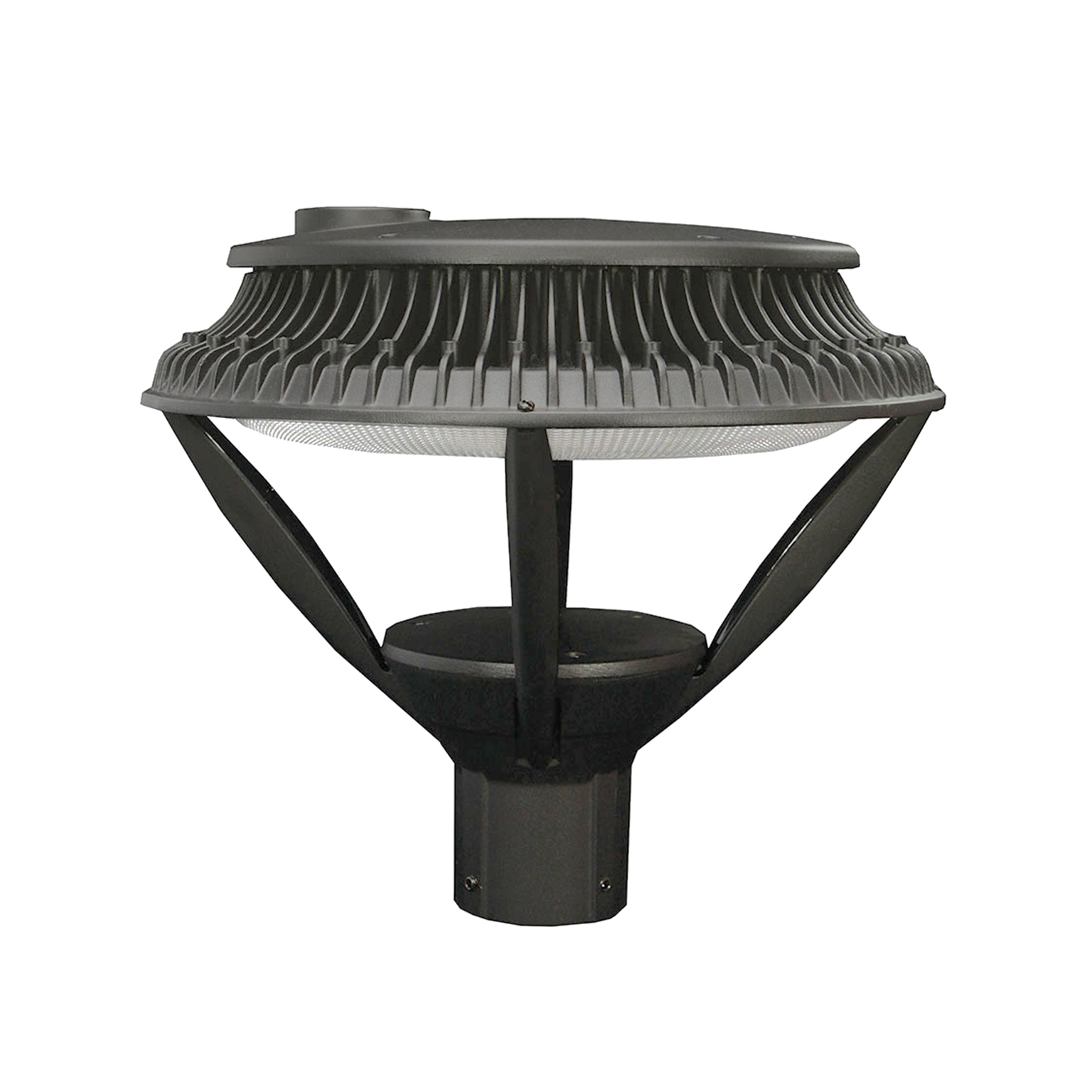

REVEAL 39W + 86W
Wall IP66 LED Post Top Luminaire
The REVEAL 39W & 86W is an IP66 robust post top luminaire with open and enclosed optic options. Black powder coat finish.
| Luminous Flux: | 2,726lm or 8,192lm |
| System Power: | 39 - 86W |
| Efficacy: | 94.1 L.L/cW |
| Colour Temperature: | 4000k or 5000k |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Body Construction: | Die cast aluminium and front frame |
| Dimensions: | Ø411mm (Diameter) |
| Cut Out: | n/a |
| Depth: | 378mm |
| IP Rating: | IP66 |
| Finish: | Black |
| Diffuser: | Open optics or Enclosed optics |
| Control Gear: | Standard, Non Dimming |
| Wireless: | n/a |
| Installation: | Ø76mm Post Top Spigot |
| Distribution: | Direct |
| Emergency: | n/a |
