Exterior Lighting

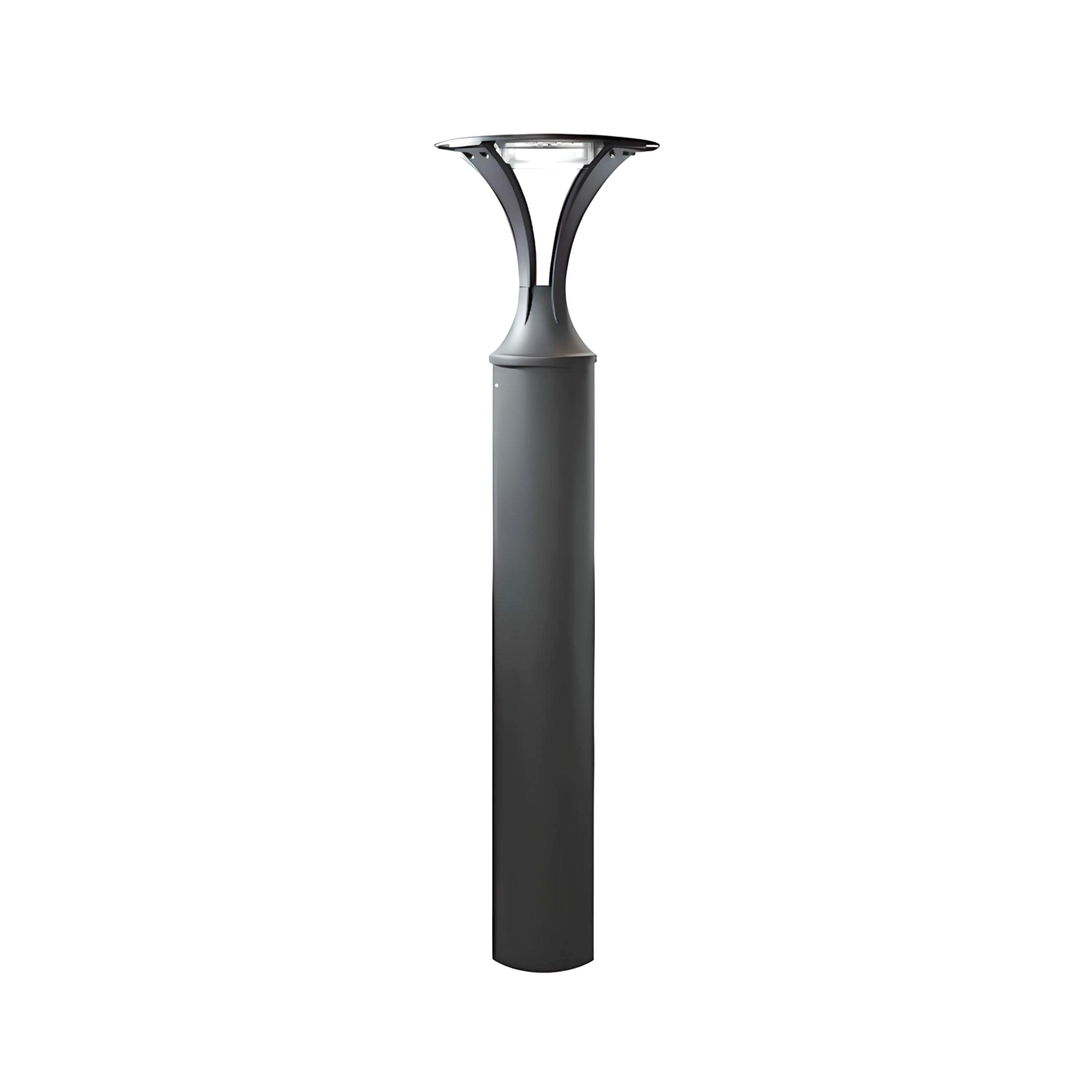

HAWAII

Recessed IP66 LED Luminaire

The HAWAII is an IP66 decorative bollard with a clear inner lens and medium beam spread. The bollard has an internal ballast tray for ease of maintenance.

Luminous Flux: 1539lm
System Power: 19.6W
Efficacy: 78.5 L.Lm/cW
Colour Temperature: 4000k
CRI: RA > 80
Colour Consistency: 3SDCM
Life Expectancy L70/F10: 50,000hrs
Body Construction: Die cast aluminium body
Dimensions: Ø120mm (Diameter), Ø260mm (Head Diameter)
Cut Out: n/a
Depth: 1095mm
IP Rating: IP66
Finish: Black
Diffuser: Clear polycarbonate vandal-resistant lens
Control Gear: Standard, non dimming
Wireless: n/a
Installation:
Distribution: Direct
Emergency: ME3, ME3-ST, or ME3-PRO

Downloads
