Downlights & Display Lighting

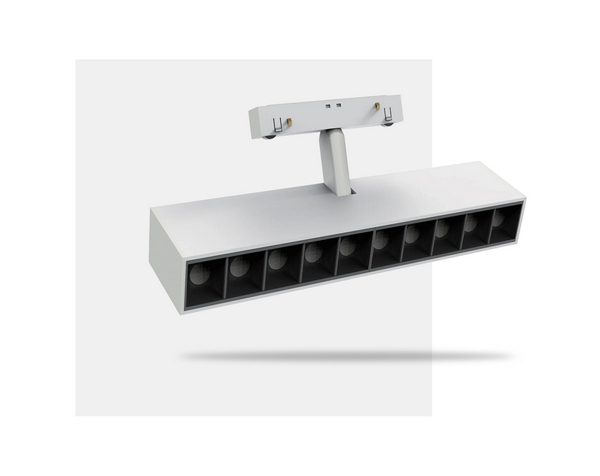

MAG-48V 10STAR
LED Linear Lamp Suited For 48V Mag-Track
The MAG-48V TRK-10STAR if made from an aluminium body for optimal heat dissipation, with built-in magnets for secure mounting, and an adjustable design for versatile lighting angles. It supports DALI, 0-10V, and Zigbee control systems.
| Luminous Flux: | 1358lm |
| System Power: | 20W |
| Efficacy: | 68 L.Lm/cW |
| Colour Temperature: | 27000k - 6000k & Tuneable white |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Body Construction: | Aluminium body |
| Dimensions: | 270 x 59 x 35mm (L x W x D) |
| Depth: | 35mm |
| IP Rating: | IP20 |
| Finish: | White or Black |
| Diffuser: | Opal |
| Control Gear: | Standard, 0-10V, DALI or Wireless |
| Wireless: | Available |
| Installation: | 48v Track Mounted |
| Distribution: | Direct |
| Emergency: | Remote EMLED MAG TRK available |
