Exterior Lighting
STEP

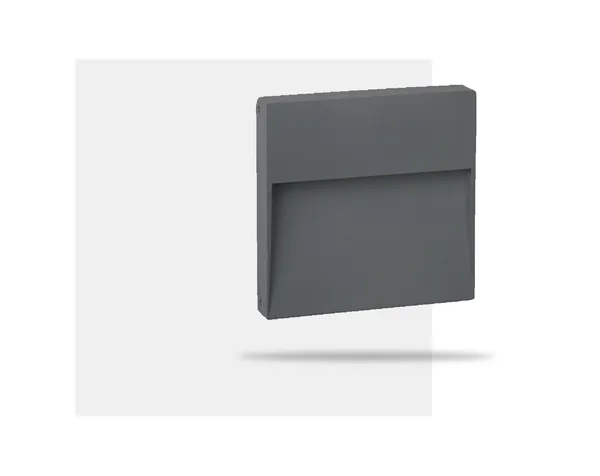

IP65 STEP Light LED Luminaire
The STEP LED is designed for both surface-mounted and recessed installations. It can be installed flush with the wall using an optional back box accessory and is engineered to suit minimal wall thickness requirements.
| Luminous Flux: | (SQ) 520lm | (RECT) 936lm |
| System Power: | |
| Efficacy: | Up to 65 l.Lm/cW |
| Colour Temperature: | 2700K, 3000K or 4000K |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Body Construction: | Die cast aluminium body |
| Dimensions: | (SQ) 175 x 175 x 30 mm | (RECT) 280 x 150 x 31 mm (Length x Width x Depth) |
| IP Rating: | IP66 |
| Finish: | Dark Grey, Light Grey or Bronze |
| Control Gear: | Standard or MDIM |
| Wireless: | n/a |
| Installation: | Surface, Recessed or Flushed |
| Distribution: | Direct |
| Emergency: | n/a |
