REVEAL-V2
IP65 LED Pole Mounted Luminaire

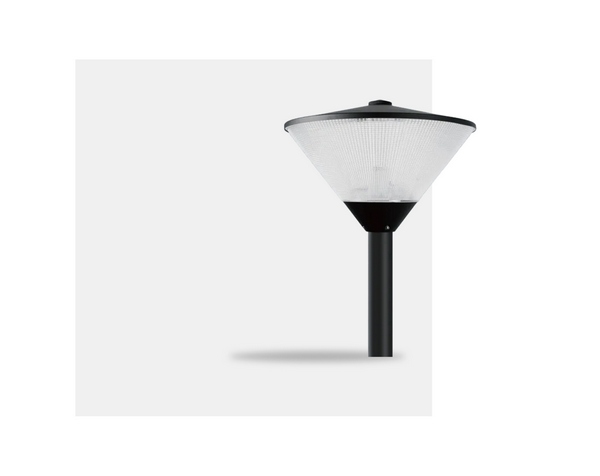

The REVEAL-V2 is available in two styles and is ideal for pathways, pedestrian zones, courtyards, and small car parks. It features a choice of prismatic or transparent diffuser and is compatible with Ø60mm and Ø76mm poles
| Luminous Flux: | (PD) 5400lm or 7800lm | (PD) 5300lm or 7800lm |
| System Power: | |
| Efficacy: | Up to 132.5 l.Lm/cW |
| Colour Temperature: | 4000K |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Body Construction: | Die cast aluminium housing and front frame |
| Dimensions: | (CL) Ø610 x 435mm | (PD) Ø600 x 426mm (Dia x Heights) |
| IP Rating: | IP65 |
| Finish: | Black as standard, other RALs available |
| Diffuser: | Clear or Prismatic Diffuser |
| Control Gear: | Standard, Non Dimming |
| Wireless: | n/a |
| Installation: | Pole Mounting: Ø60mm or Ø76mm |
| Distribution: | Direct |
| Emergency: | n/a |
