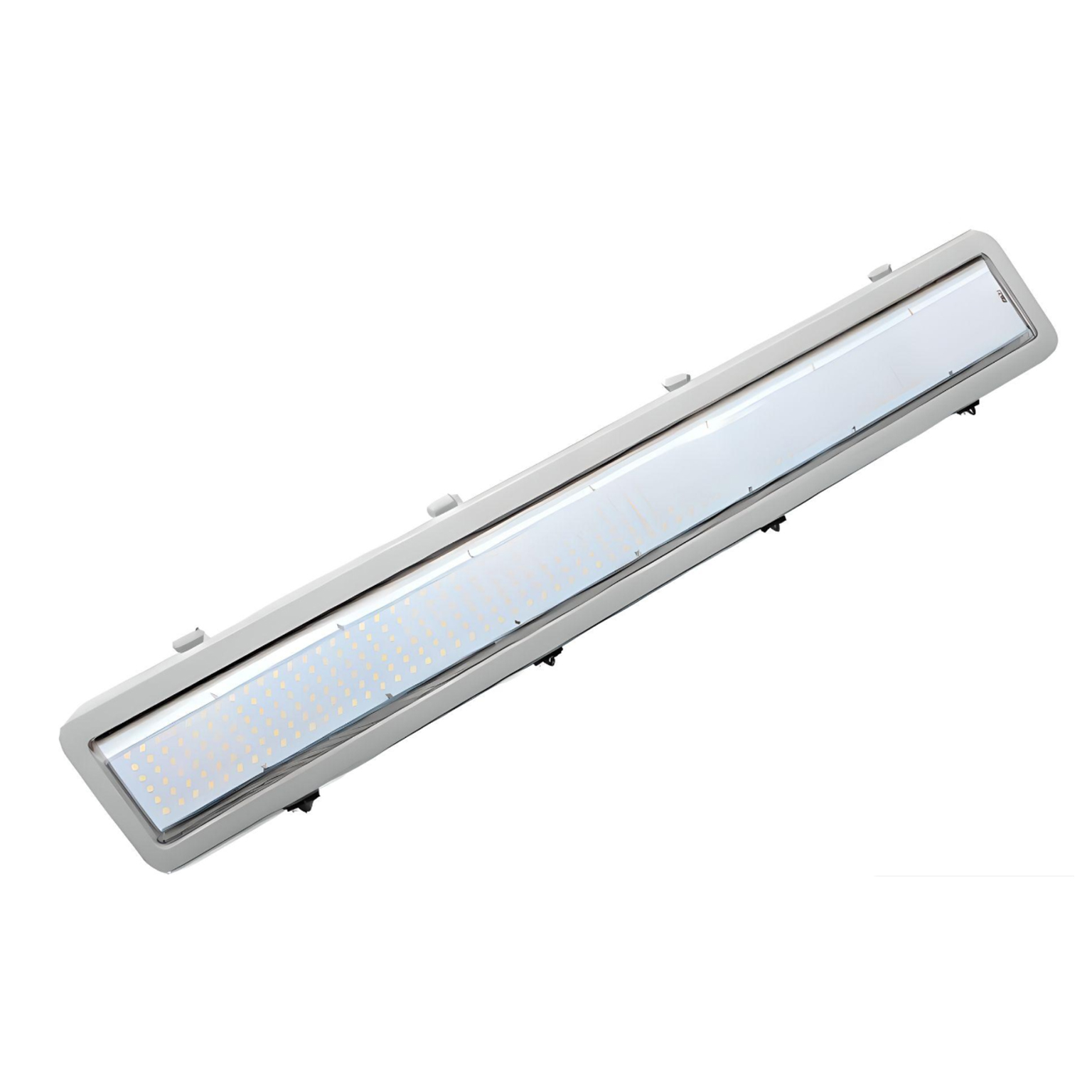

MIVP-HD
Surface IP66 LED Luminaire
The MIVP-HD is a heavy duty die cast aluminium housing and top frame with grey powder coat finish. Can be tapped for side conduit entry
| Luminous Flux: | 5,695 - 15,930lm |
| System Power: | 58 - 152W |
| Efficacy: | 103.4 L.Lm/cW |
| Colour Temperature: | 4000k |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Body Construction: | Die cast aluminium housing |
| Dimensions: | 614 x 178mm (58 & 78W) or 1247 x 178mm (126 & 152W) (Length x Width) |
| Cut Out: | n/a |
| Depth: | 102mm |
| IP Rating: | IP66 |
| Finish: | Grey |
| Diffuser: | Clear |
| Control Gear: | Standard, non dimming |
| Wireless: | n/a |
| Installation: | Surface mounted |
| Distribution: | Direct |
| Emergency: | ME3, ME3-ST, or ME3-PRO |
