Downlights & Display Lighting
WAFER-C-SURFACE

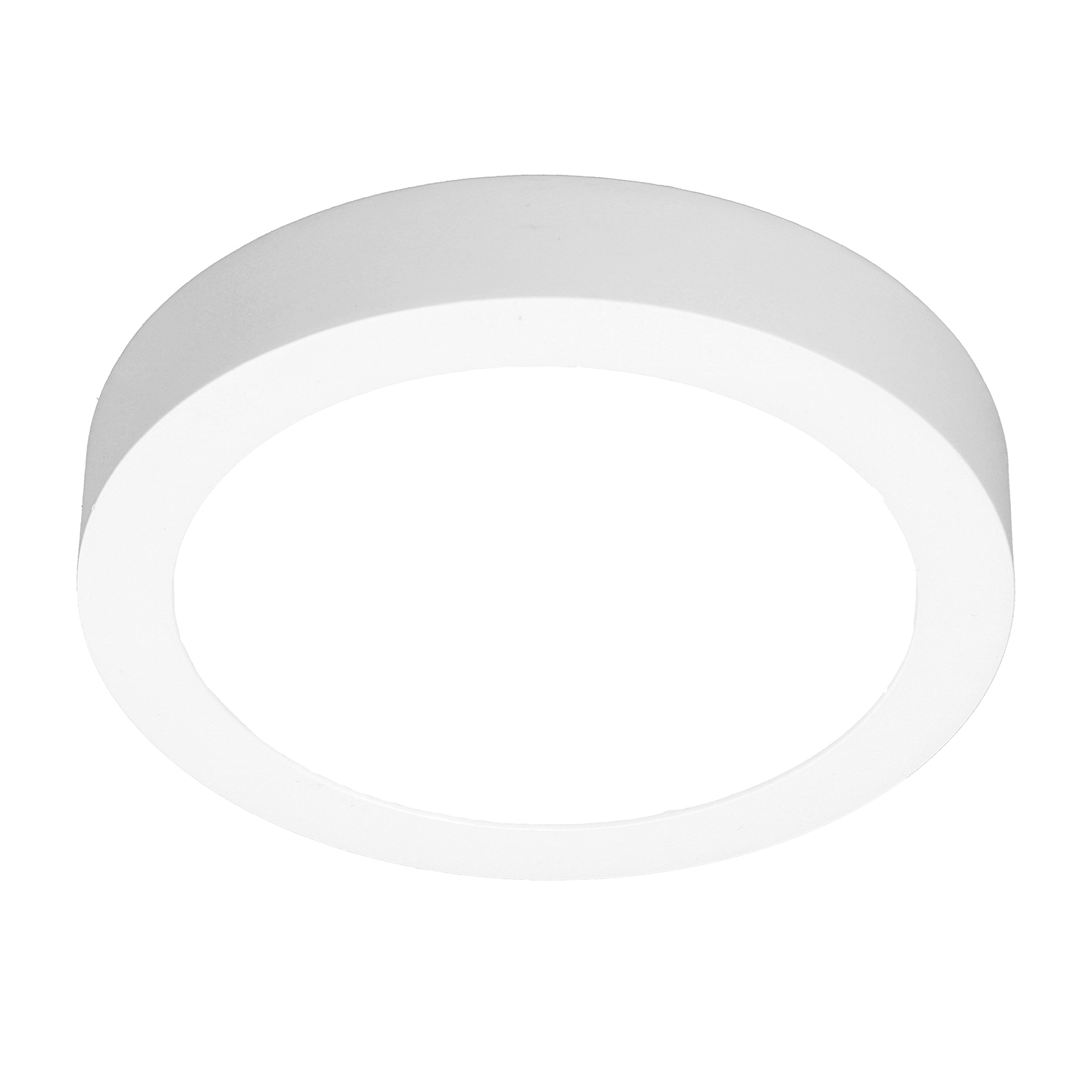

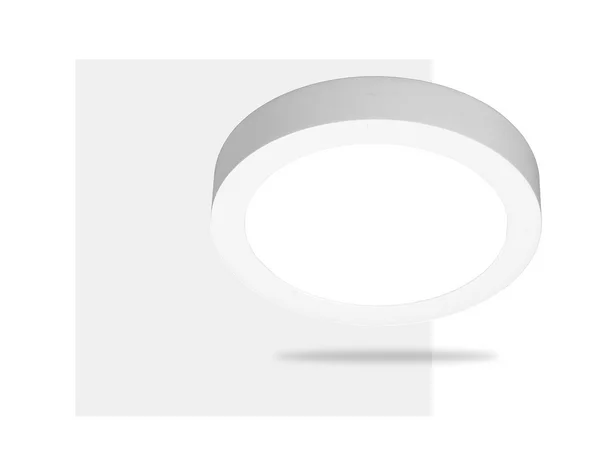

Surface Mounted Circular WAFER
The WAFER-C SURFACE is an ultra shallow, surface-mounted luminaire designed for spaces with restricted ceiling heights. Its refined, minimal design allows it to blend seamlessly into a wide range of architectural environments.
| Luminous Flux: | 537lm | 827lm | 1118lm | 1556lm | 2480lm | 4340lm |
| System Power: | 8W | 11W | 15W | 22W | 28W | 41W |
| Efficacy: | Up to 105.9 l.Lm/cW |
| Colour Temperature: | 3000K, 4000K or 6500K |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Dimensions: | Ø117mm | Ø180mm | Ø240mm | Ø300mm | Ø420mm |
| Depth: | 39mm |
| IP Rating: | IP20 |
| Finish: | White or Black |
| Diffuser: | Opal |
| Control Gear: | Standard, DALI, SDIM or MDIM |
| Wireless: | Available |
| Installation: | Surface Mounted |
| Distribution: | Direct |
| Emergency: | RME3, RME3-ST, RME3-PRO or RME3-WI |
