Downlights & Display Lighting
WAFER-SQ-RECESSED

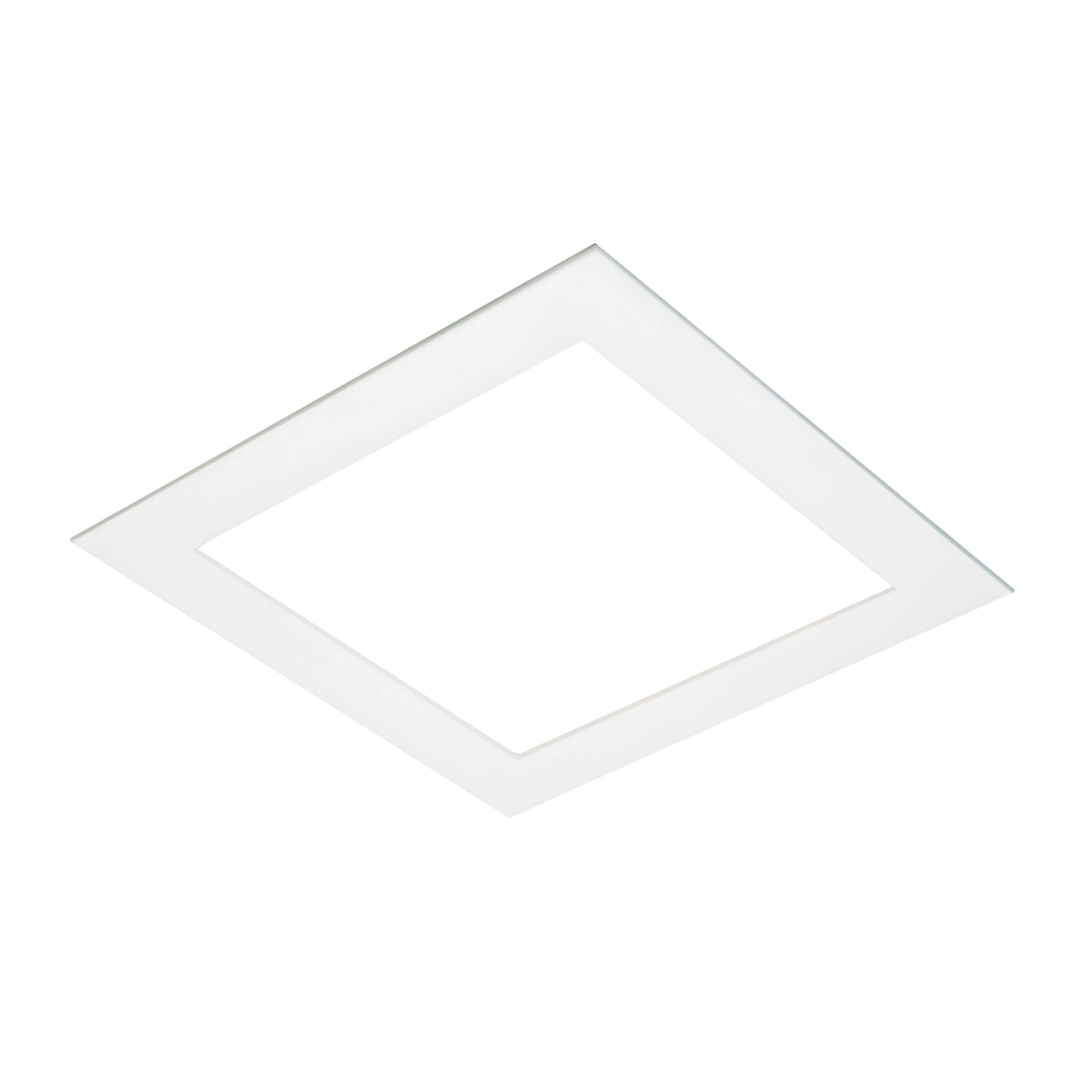

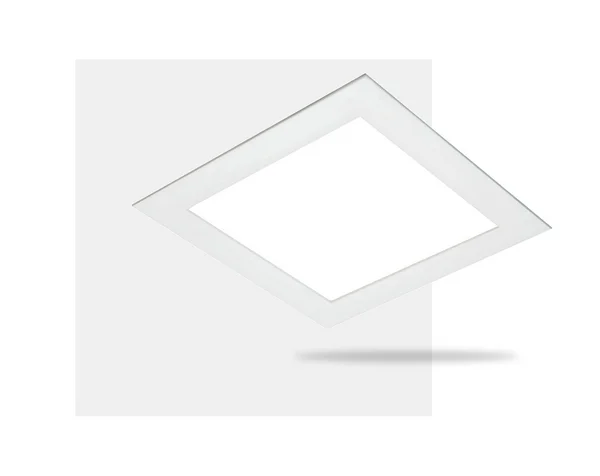

Recessed WAFER Square
The WAFER-P/SQ is an ultra-shallow, IP65-rated, semi-recessed opal luminaire with soft corners. Designed for restricted ceiling heights, its clean, minimal form integrates into a variety of architectural spaces.
| Luminous Flux: | 556lm | 855lm | 1066lm | 1507lm | 2347lm |
| System Power: | 8W | 11W | 15W | 22W | 30W |
| Efficacy: | 77.7 L.Lm/cW |
| Colour Temperature: | 3000K, 4000K or 6500K |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Body Construction: | Aluminium |
| Dimensions: | 108mm² | 168mm² | 220mm ² | 300mm² (Length x Width) |
| Cut Out: | 96mm² | 152mm² | 204mm² | 284mm² |
| Depth: | 19mm (without driver) |
| IP Rating: | IP20 |
| Finish: | White |
| Diffuser: | Opal |
| Control Gear: | Standard, DALI, SDIM or MDIM |
| Wireless: | Available |
| Installation: | Recessed |
| Distribution: | Direct |
| Emergency: | RME3, RME3-ST, RME3-PRO or RME3-WI |
