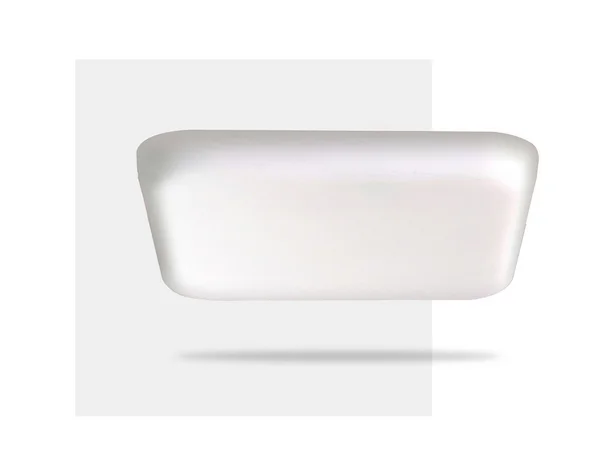

WAFER-P-SQ
Semi-Recessed WAFER-P Square
The WAFER-P/SQ is an ultra-shallow, IP65-rated, semi-recessed opal luminaire with soft corners. Designed for restricted ceiling heights, its clean, minimal form integrates into a variety of architectural spaces.
| Luminous Flux: | 556lm | 855lm |1066lm | 1507lm | 2347lm |
| System Power: | 8W | 11W | 15W | 22W | 30W |
| Efficacy: | Up to 80.5 l.Lm/cW |
| Colour Temperature: | 3000K, 4000K or 6500K |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Dimensions: | 100mm² | 125mm² | 155mm² | 185mm² | 215mm² |
| Cut Out: | Ø80mm² | Ø105mm² | Ø165mm² | Ø195mm² |
| Depth: | 20mm without driver, with driver depth may vary |
| IP Rating: | IP65 |
| Finish: | White |
| Diffuser: | Opal |
| Control Gear: | Standard, DALI, SDIM or MDIM |
| Wireless: | Available |
| Installation: | Recessed |
| Distribution: | Direct |
| Emergency: | RME3, RME3-ST, RME3-PRO or RME3-WI |
