ILS PI

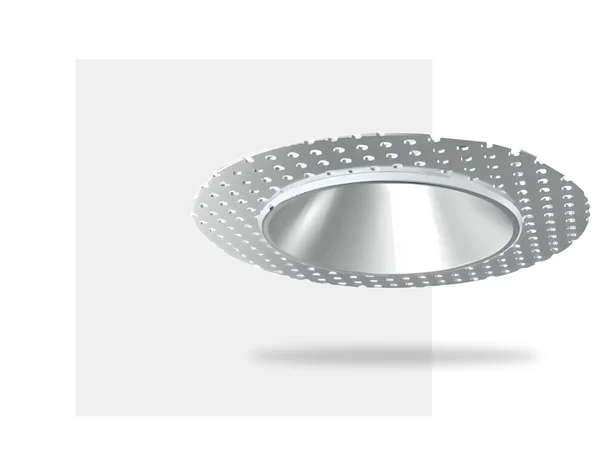

Recessed ILS Plaster-in Downlight
The adjustable plaster-in ILS downlight is a competitive, interchangeable and architectural LED downlight system. An alternative light engine to a MR16 or GU10 lamp. The ILS PI can be used with the ILS 6W and 9W engine wattages.
| Luminous Flux: | 800 to 2200lm |
| System Power: | 8 - 20W |
| Efficacy: | 110 L.Lm/cW |
| Colour Temperature: | 3000k or 4000k |
| CRI: | RA > 90 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Body Construction: | Aluminium housing |
| Dimensions: | Ø100mm (Diameter) |
| Cut Out: | Ø73mm |
| Depth: | 80mm (8W) or 100mm (11W) |
| IP Rating: | IP20 |
| Finish: | White, Silver, Grey or Black |
| Diffuser: | Clear |
| Control Gear: | Standard, DALI, SDIM or MDIM |
| Wireless: | Available |
| Installation: | Recessed - Plastered in |
| Distribution: | Direct |
| Emergency: | RME3, RME3-ST, RME3-PRO or RME3-WI |
