Downlights & Display Lighting

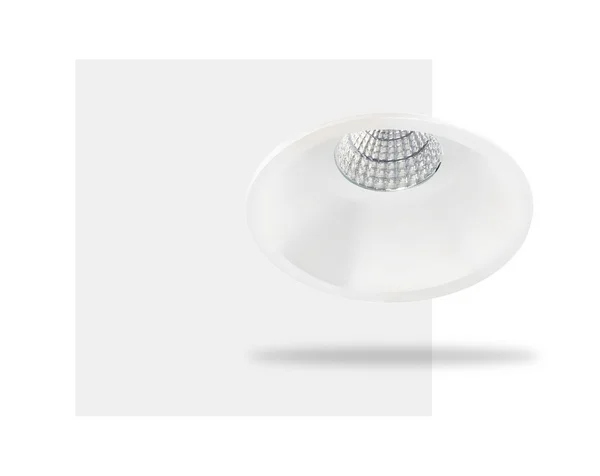

ILS R1
Adjustable ILS Downlight with R1 attachment
The ILS R1 is a compact, fixed LED downlight with an interchangeable bezel, delivering high performance lighting in a durable, refined design. An optional IP65-rated insert is also available for enhanced protection.
| Luminous Flux: | 800lm | 1160lm | 1550lm | 2200lm |
| System Power: | 6W | 9W | 13W | 18W |
| Efficacy: | Up to 116 l.Lm/cW |
| Colour Temperature: | 2700K, 3000K or 4000K |
| CRI: | RA > 90 as Standard |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Body Construction: | Aluminium housing with a polycarbonate reflector |
| Dimensions: | Ø100mm (Diameter) |
| Cut Out: | Ø90mm |
| Depth: | 74m (6W), 99mm (9W), 104mm (13 or 18W) |
| IP Rating: | IP20 | IP65 |
| Finish: | White as standard, Black, Silver or Grey |
| Diffuser: | Clear |
| Control Gear: | Standard, DALI, SDIM or MDIM |
| Wireless: | Available |
| Installation: | Recessed |
| Distribution: | Direct |
| Emergency: | RME3, RME3-ST, RME3-PRO or RME3-WI |
