ILS A1

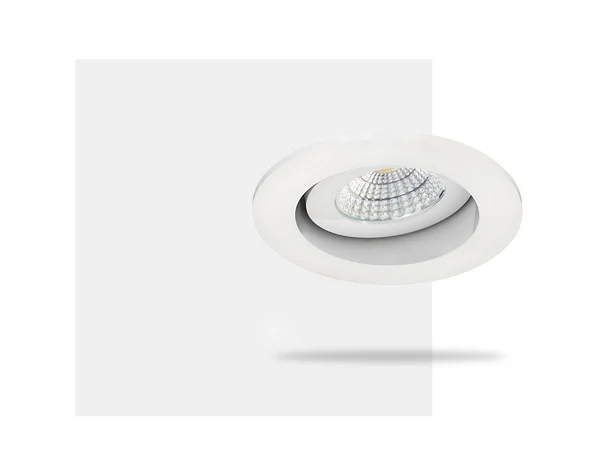

Recessed LED ILS A1 Downlight
The compact, adjustable ILS A1 downlight is a versatile and high quality LED system, offering competitive performance with an interchangeable bezel.
| Luminous Flux: | 800lm | 1160lm | 1550lm | 2200lm |
| System Power: | 6W | 9W | 13W | 18W |
| Efficacy: | Up to 116 l.Lm/cW |
| Colour Temperature: | 2700K, 3000K or 4000K |
| CRI: | RA > 90 as Standard |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Body Construction: | Aluminium housing with a polycarbonate reflector |
| Dimensions: | Ø90mm (Diameter) |
| Cut Out: | Ø75mm |
| Depth: | 64mm (6W), 82mm (9W), 86mm (13 or 18W) |
| IP Rating: | IP20 |
| Finish: | White as standard, Black, Silver or Grey |
| Diffuser: | Clear |
| Control Gear: | Standard, DALI, SDIM or MDIM |
| Wireless: | Available |
| Installation: | Recessed |
| Distribution: | Direct |
| Emergency: | RME3, RME3-ST, RME3-PRO or RME3-WI |
