Surface & Suspended Lighting

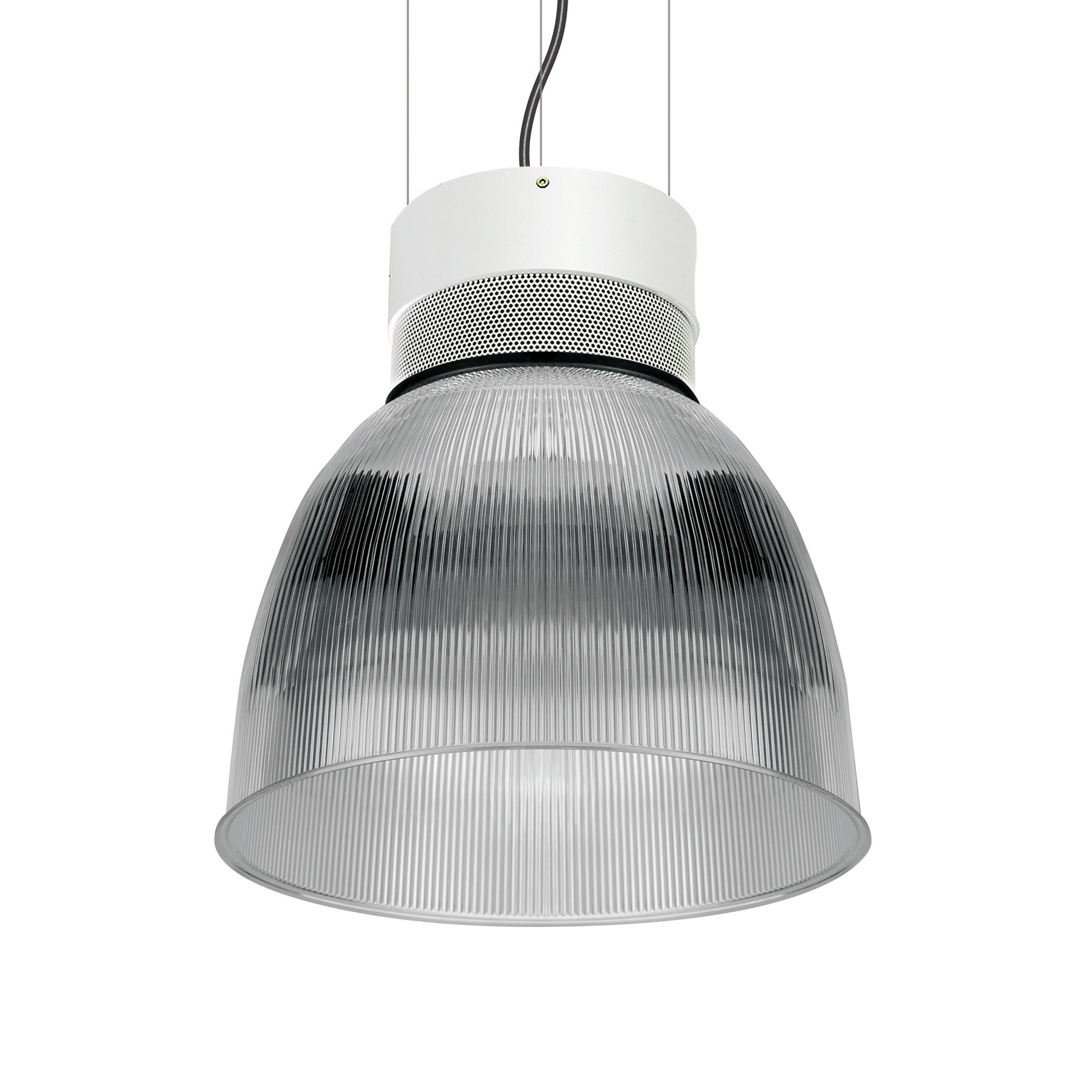

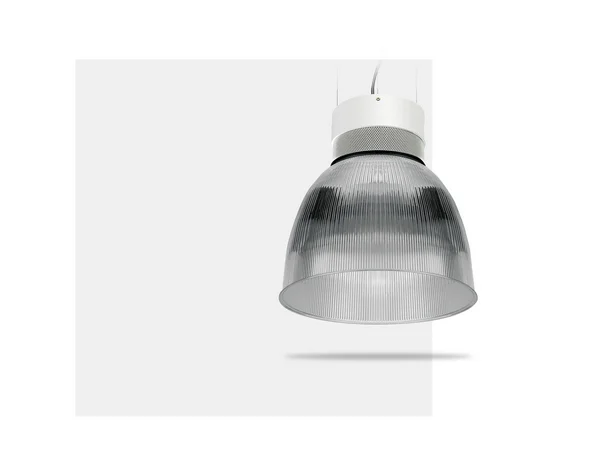

QUARTZ
Suspended LED Luminaire
The Quartz is a high-efficiency LED pendant featuring a Philips Fortimo DLM Flex module and Xitanium driver. A clear PMMA refractor ensures optimal, even light distribution.
| Luminous Flux: | 1017lm | 2085lm | 2922lm | 4629lm |
| System Power: | 9.9W | /19.5W | 30.3W | 46.6W |
| Efficacy: | Up to 110.6 l.Lm/cW |
| Colour Temperature: | 3000K or 4000K |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 60,000hrs |
| Dimensions: | Ø416mm (Diameter) |
| Depth: | 390mm |
| IP Rating: | IP20 |
| Finish: | White, Black or any RAL colour available |
| Diffuser: | Clear |
| Control Gear: | Standard, DALI or SDIM |
| Wireless: | Available |
| Installation: | Suspended with 2M adjustable wire, suspension kit |
| Distribution: | Direct |
| Emergency: | ME3, ME3-ST, ME3-PRO or ME3-WI |
