ILS CELL3

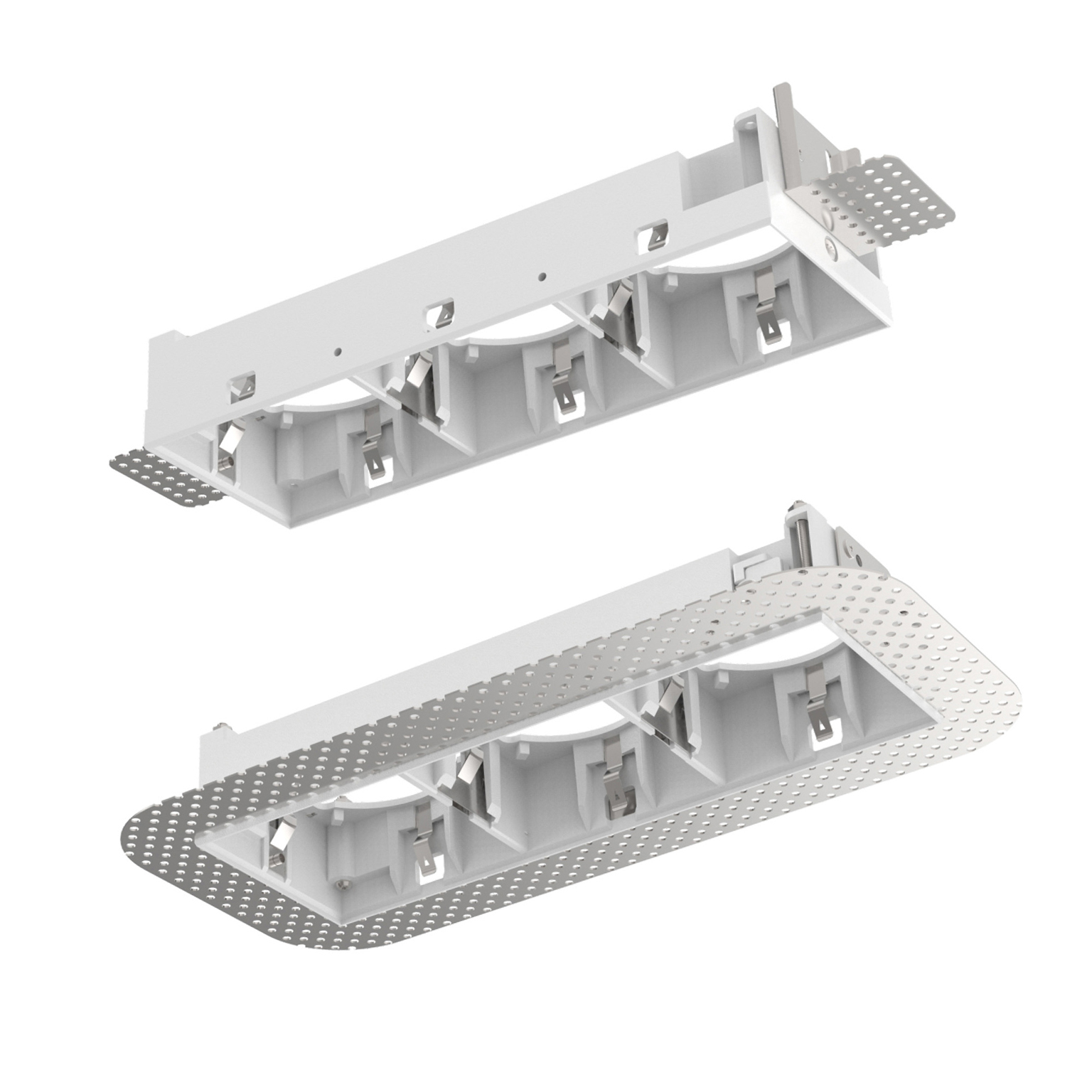

ILS Cell3 Trimmed or Plaster-in
The ILS CELL3 is a range of interchangeable trimmed and plaster-in bezel options and has a range of reflector colours available. The CELL3 can be used with the ILS 6W and 9W engine wattages
| Luminous Flux: | 650lm or 905lm |
| System Power: | 8W or 119W |
| Efficacy: | 81.3L.Lm/cW |
| Colour Temperature: | 3000k or 4000k |
| CRI: | RA > 80 |
| Colour Consistency: | 3SDCM |
| Life Expectancy L70/F10: | 50,000hrs |
| Body Construction: | Aluminium housing |
| Dimensions: | Trimmed: 207 x 78mm, Plaster-in: 240 x 112mm |
| Cut Out: | Trimmed: 198 x 68mm, Plaster-in: 200 x 72mm |
| Depth: | 72mm (8W) or 98mm (11W) |
| IP Rating: | IP20 |
| Finish: | Black or White |
| Diffuser: | Clear |
| Control Gear: | STD, DALI, SDIM or MDIM |
| Wireless: | Available |
| Installation: | Recessed - Trimmed or Recessed - Plastered in |
| Distribution: | Direct |
| Emergency: | RME3, RME3-ST, RME3-PRO or RME3-WI |
