Downlights & Display Lighting

ILS A1

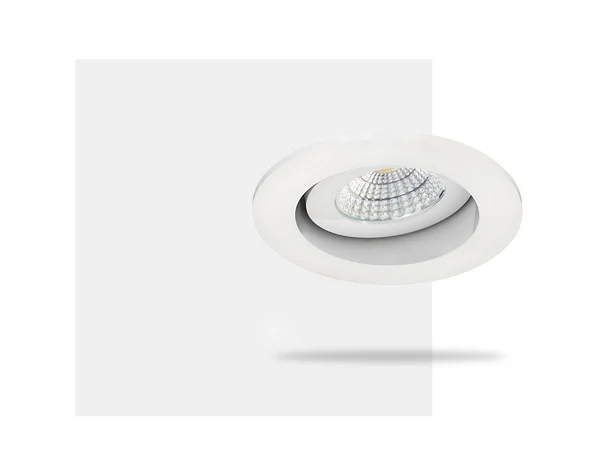

Recessed ILS A1 Downlight

The small adjustable ILS A1 downlight is a competitive, interchangeable and architectural LED downlight system. An alternative light engine to a MR16 or GU10 lamp.

Luminous Flux: 650 - 2000lm
System Power: 8 - 21W
Efficacy: 90.9 L.Lm/cW
Colour Temperature: 3000k or 4000k
CRI: RA > 80
Colour Consistency: 3SDCM
Life Expectancy L70/F10: 50,000hrs
Body Construction: Aluminium housing with a polycarbonate reflector
Dimensions: Ø90mm (Diameter)
Cut Out: Ø75mm
Depth: 64mm (6W), 82mm (9W), 86mm (13 or 18W)
IP Rating: IP20
Finish: White as standard, Black, Silver or Grey
Diffuser: Clear
Control Gear: Standard, DALI, SDIM or MDIM
Wireless: Available
Installation: Recessed
Distribution: Direct
Emergency: RME3, RME3-ST, RME3-PRO or RME3-WI
